DOUBLE TRACK LINEAR GUIDE DIMENSIONS
- Compact overall package.
- Standard and custom lenghths.
- Easy to install.

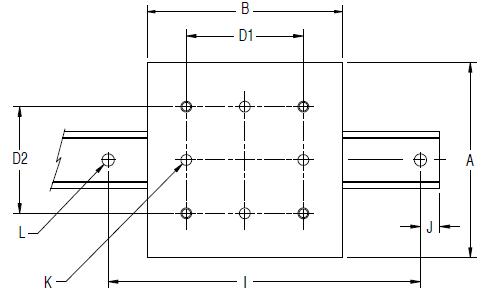

DIMENSIONS(INCHES)
SIZE |
A |
B |
C |
D1 |
D2 |
E |
F |
G |
H |
I |
J |
K |
L |
CARRIAGE |
RAIL |
DT-1 |
2.500 |
2.500 |
0.250 |
1.500 |
1.366 |
0.999 |
0.500 |
0.250 |
0.312 |
4.000 |
1.500 |
#6-32 UNC |
0.156 |
DTC-1 |
DTR-1 |
DT-2 |
4.000 |
4.000 |
0.500 |
2.500 |
1.993 |
1.438 |
0.750 |
0.500 |
0.375 |
6.000 |
1.500 |
1/4-20 UNC |
0.219 |
DTC-2 |
DTR-2 |
DT-3 |
5.000 |
5.000 |
0.500 |
3.000 |
2.738 |
1.750 |
0.750 |
0.500 |
0.500 |
8.000 |
1.500 |
5/16-18 UNC |
0.313 |
DTC-3 |
DTR-3 |
DT-4 |
6.000 |
6.000 |
0.625 |
3.500 |
3.483 |
2.156 |
1.000 |
0.625 |
0.594 |
8.000 |
1.500 |
3/8-16 UNC |
0.375 |
DTC-4 |
DTR-4 |
LOADCAPACITY(LBS.)
|
LBS. |
FT-LBS. |
SIZE |
LA |
LR |
MA |
MR |
DT-1 |
228 |
268 |
125 |
118 |
DT-2 |
560 |
644 |
505 |
434 |
DT-3 |
1528 |
1382 |
1776 |
1676 |
DT-4 |
3596 |
2116 |
5106 |
5091 |
Working load capacities reflect
lubricated wheel/track interface.
ORDERING
LINEAR GUIDE |
DT-___ |
X____(INCHES) |
CARRIAGE |
DTC-___ |
|
RAIL |
DTR-___ |
X__* |
* STANDARD LENGTHS 12,24,36,48,60
INCHES MAX LENGHT 48 INCHES
